Denali CANsmart Controller GEN II – Triumph Tiger 1200 & 900 Series

Harness the flexibility and intelligence of your Triumph motorcycle’s CANbus electrical system to make installation of accessories drastically easier with the new and improved DENALI CANsmart™ Controller GEN II.

The DENALI CANsmart™ Controller provides plug-n-play installation and integrated control of up to four accessories to enable dozens of customizable settings that can be controlled right from your Triumph’s hand controls or the CANsmart™ Accessory Manager Software.

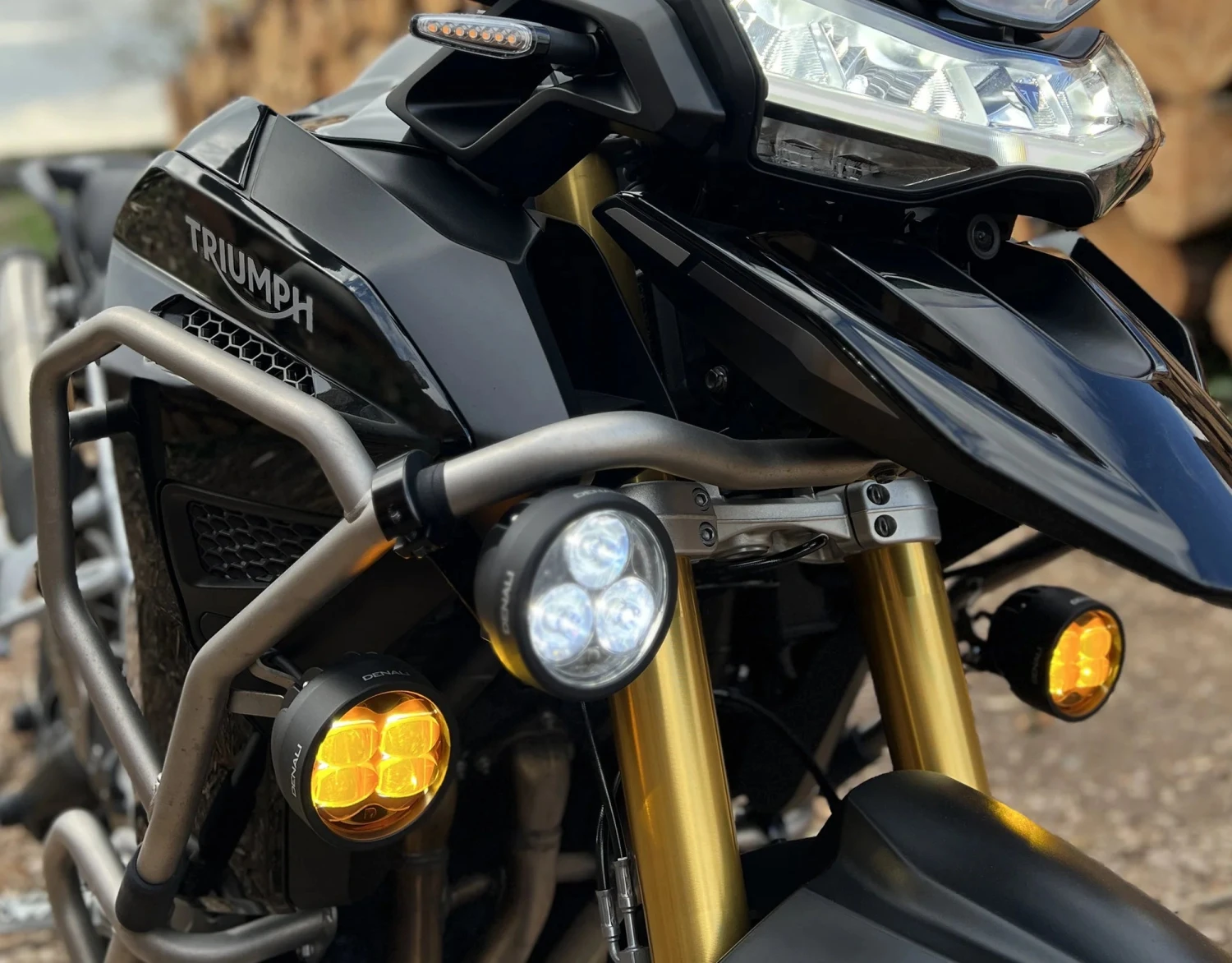

The CANsmart’s four circuits are preprogrammed to connect and independently control two sets of DENALI 2.0 lights, a SoundBomb horn, and our B6 auxiliary brake light.
Gen II – More Features, More Power, More Versatile

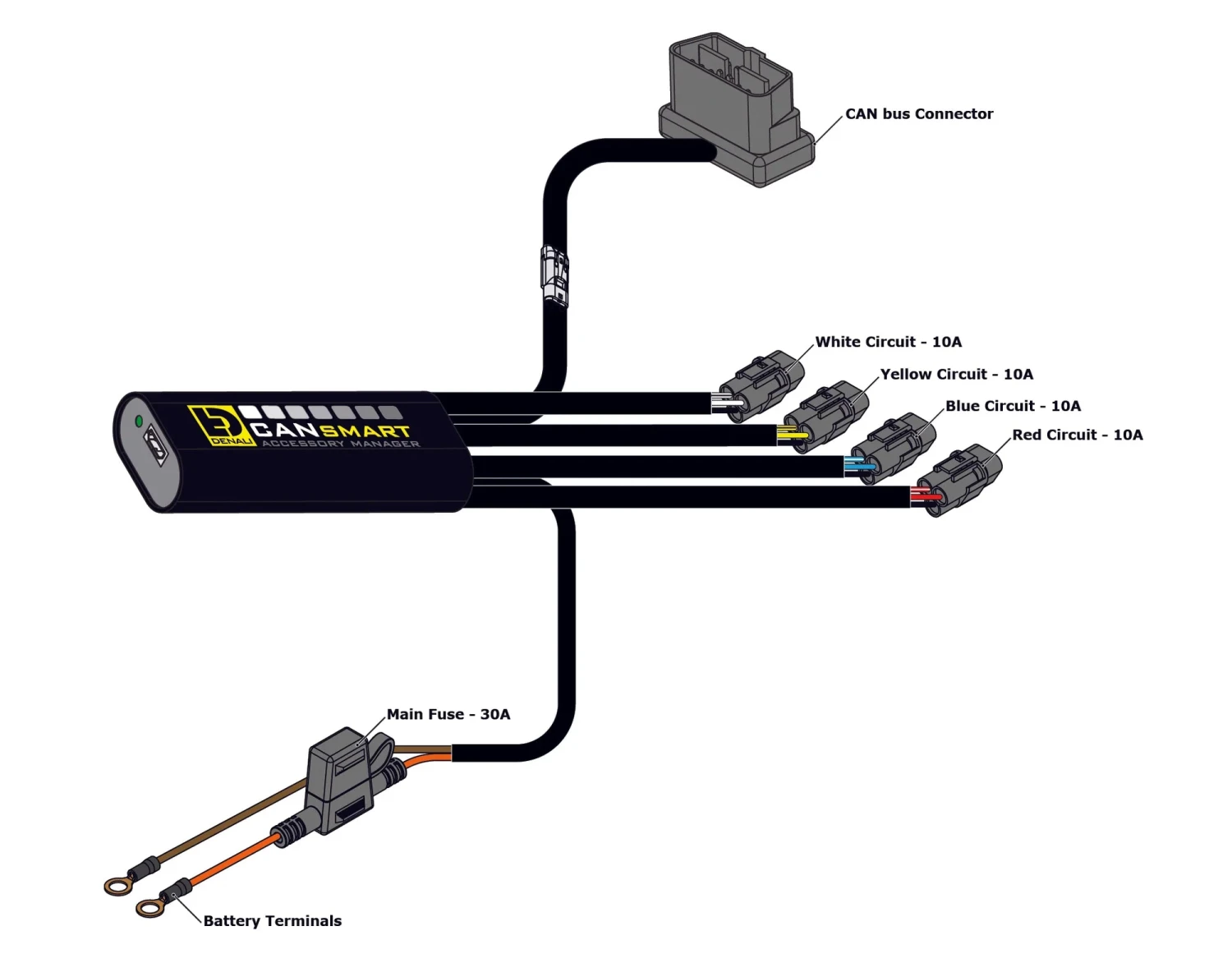

Unlike the Gen I CANsmart, all four circuits of the Gen II can provide a full 10 amps of continuous power and each circuit can be configured to run any accessory type. The maximum power draw for the whole unit remains at 30 amps continuous. The Gen II also features two new auxiliary light settings. You can now modulate your auxiliary lights for added conspicuity, and set your left and right side lights to independently cancel when you activate your corresponding turn signal.

Features

• High/Low Sync – Set auxiliary lights to switch between a programmable high/low setting with the factory high beam switch.

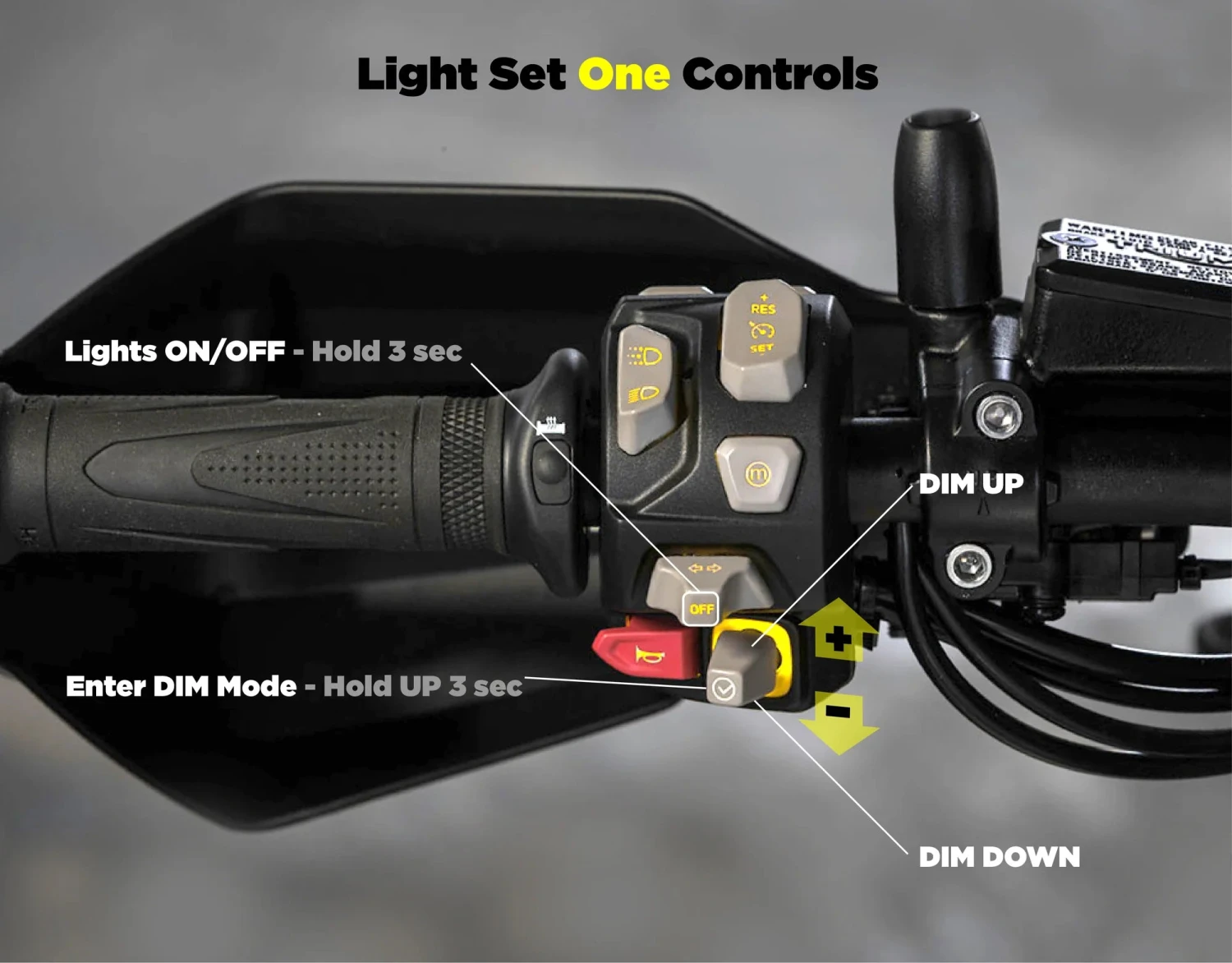

• ON/OFF and Dim – Independently control two sets of lights ON/OFF and change intensity level (for both day and night) right from your original vehicle switches.
• Modulate Lights – Set auxiliary lights to modulate to increase your visibility to other motorists.
• Flash to Pass – Need to get someone’s attention? Pulse your high beam switch three times and your auxiliary lights will strobe three times fast.
• Cancel With Turn Signal – This feature cancels the corresponding auxiliary light when you turn your turn signal on preventing powerful auxiliary lights from overpowering your signal.
• Inverse Flashing With Hazards – This features flashes your auxiliary lights inversely to your hazard lights, increasing visibility during road side emergency’s.
• Plug & Play Horn Installation – Quickly and easily connect high power aftermarket horns like our SoundBomb™ without having to add an additional harness or relay.
• Strobe with Horn – With this feature selected the CANsmart™ software will automatically strobe your auxiliary lights when you sound your horn. This feature works whether you have the factory horn or SoundBomb™ horn installed.

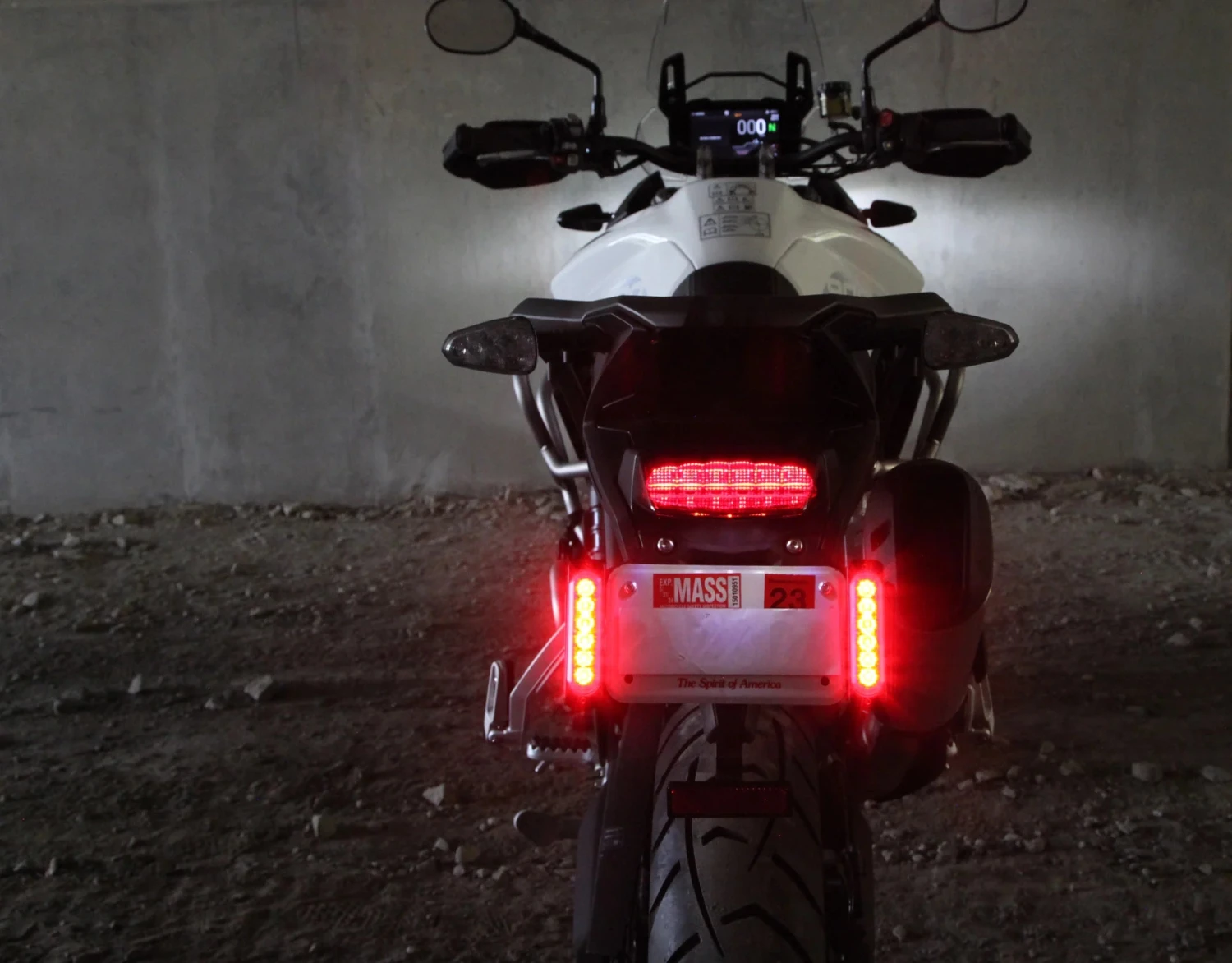

• Deceleration Activated “Smart Brake” Technology – The CANsmart™ reads vehicle speed in real time to activate your auxiliary brake light during deceleration before you even touch the brake. You can adjust the sensitivity and minimum speed at which the Smart Brake Feature will activate.
• Flash Pattern Braking – The CANsmart™ provides four different flash patterns that make our super bright auxiliary brake lights even noticeable to motorists behind you. You can set auxiliary brake lights to only flash under hard braking, flash continuously as your brake is applied or flash four times rapidly then hold steady (California legal flash rate).

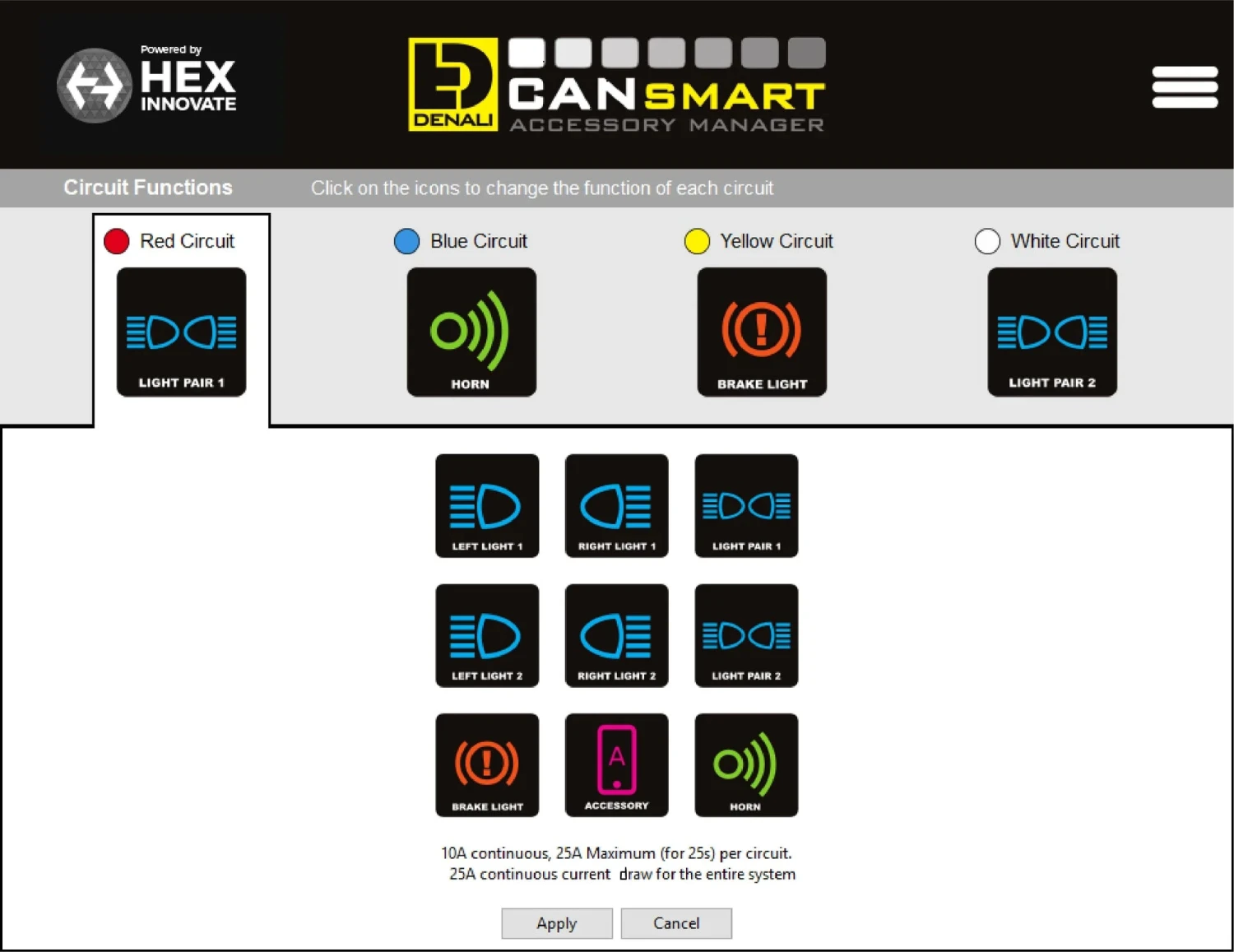

• Circuit Function Selector – The Circuit Function Selector in the CANsmart software will let you run any accessory of your choice on any of the four circuits. Click on a circuit icon to open the drop down menu and make your selection from the list of available circuit functions.
• Switched Power Source – The CANsmart™ provides a universal “accessory” option which simply gives you clean switched 12V power. That means whatever accessory you connect to this circuit will turn on and off with your ignition.
• Delay Time Out – You can also set the accessories on this circuit to have a delayed time out. This will keep them powered for up to 30 seconds after your turn off your bike.
• On Board Power – The “accessory” circuit option is ideal for powering your GPS, phone, heated gear or any other electronic device.

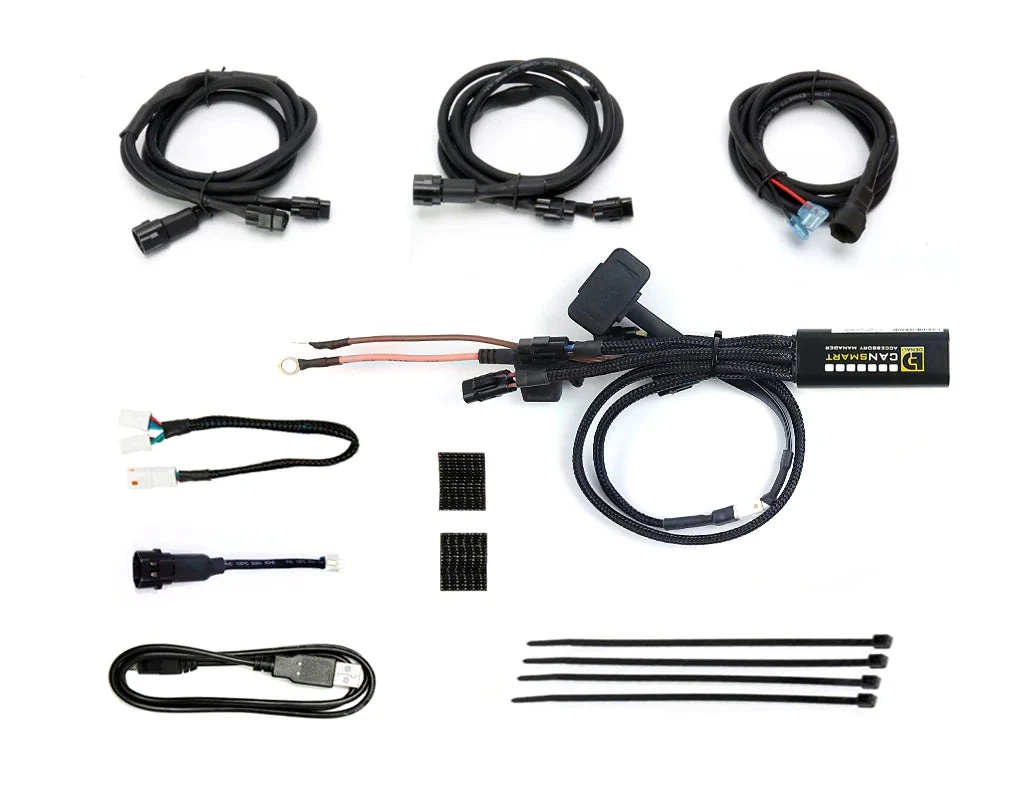

What’s In The Box?

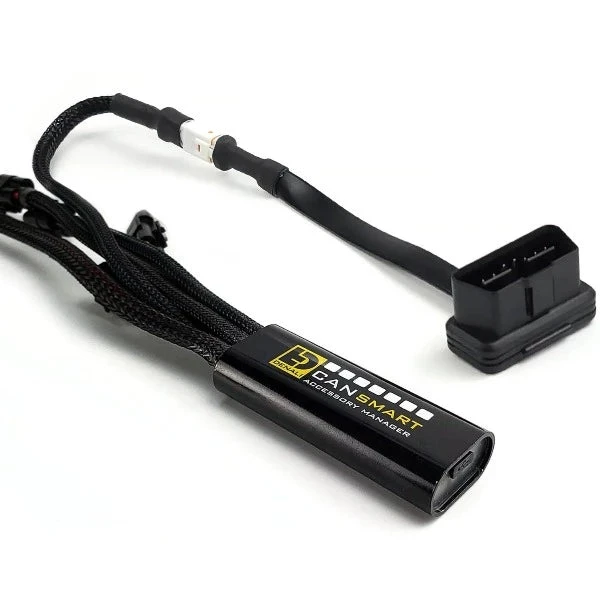

• CANsmart™ Controller
• (x2) 5.5ft Light Extension Cables
• 5ft SoundBomb Horn Extension Cable
• B6 Brake Light Wiring Adapter
• CAN bus Connection Splitter Cable
• Zip-ties
• Adhesive Hook-and-Loop Fastener
• Micro USB Programming Cable

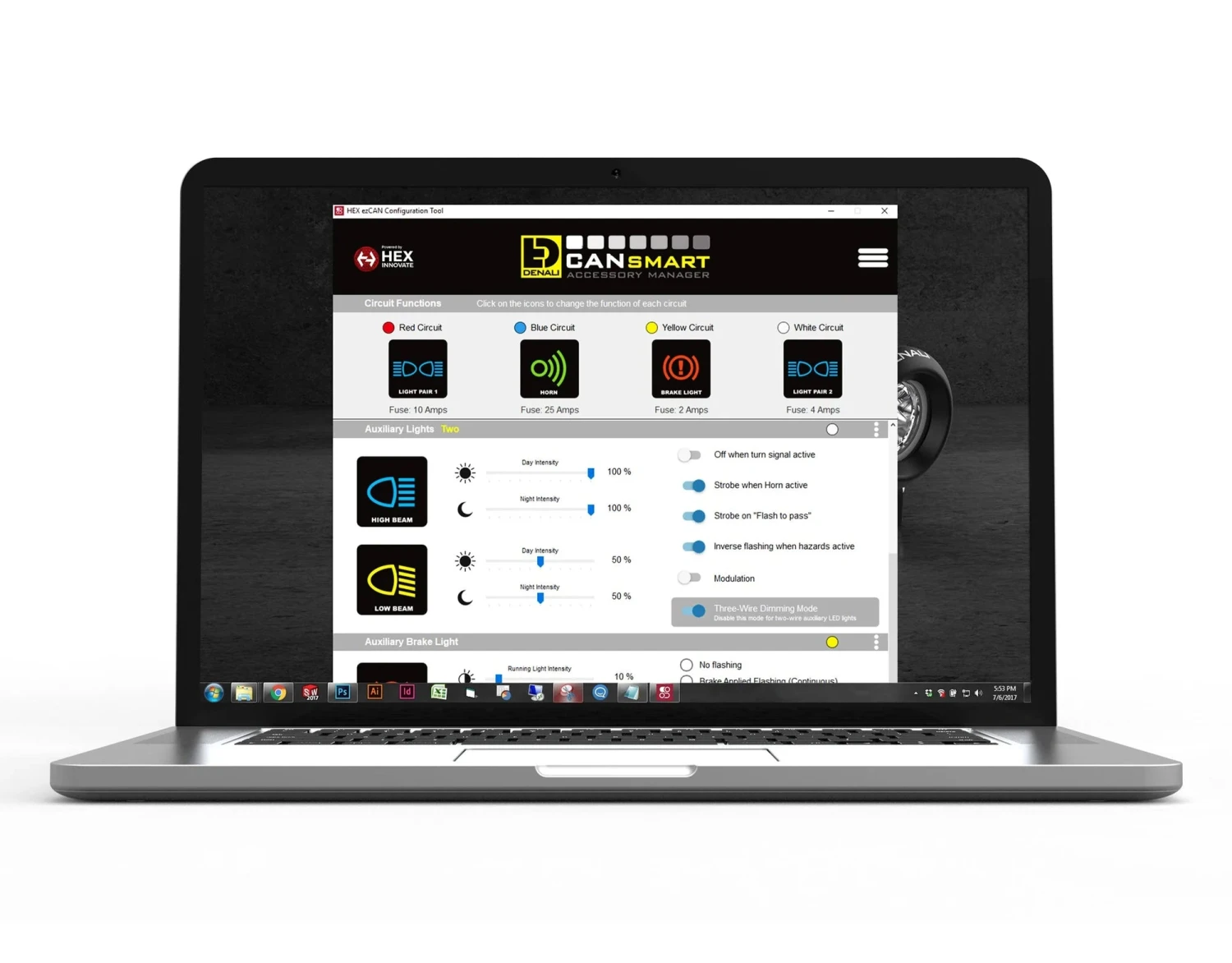

Software

Click HERE to download Windows or Mac CANsmart Accessory Manager Software

Vehicle Fitment

• Triumph Tiger 1200 GT                    (2022 – 2023)
• Triumph Tiger 1200 GT PRO            (2022 – 2023)
• Triumph Tiger 1200 GT Explorer      (2022 – 2023)
• Triumph Tiger 900 GT                      (2020 – 2023)
• Triumph Tiger 900 GT LOW             (2020 – 2023)
• Triumph Tiger 900 GT PRO              (2020 – 2023)
• Triumph Tiger 900 RALLY                 (2020 – 2023)
• Triumph Tiger 900 RALLY PRO         (2020 – 2023)
